• all-metal construction extremely resistant
• designed to be completed with multilayer filtering media
• high filtering performance of around 5 microns (sludges filtration)
• available with diameter from 400 mm to 1.600 mm – (sheetmetal body = 1.500 mm)
• available with 2.000 mm sheetmetal body for activated carbon filter version
• operating flowrate from 5 cm/h to 60 cm/h (according to model and diameter)
• hydralic unit manufactured with hydropneumatic automatic valves
• side manholes for an easy media loading
• tank painting (external/internal) with a double layer polyester powder
• polyester painting with oven drying at 200 °C
• top vent valve with automatic closing mechanism
• 1/4" sleeves on the hydraulic unit to fix the gauges
• availble with electronic controller to manage all the operating phase
• available with selenoid valve unit to activate the hydropneumatic valves
• designed for pressure till 6 bars
• filtering media not included ( at customer’s charge)

HOW IT WORKS

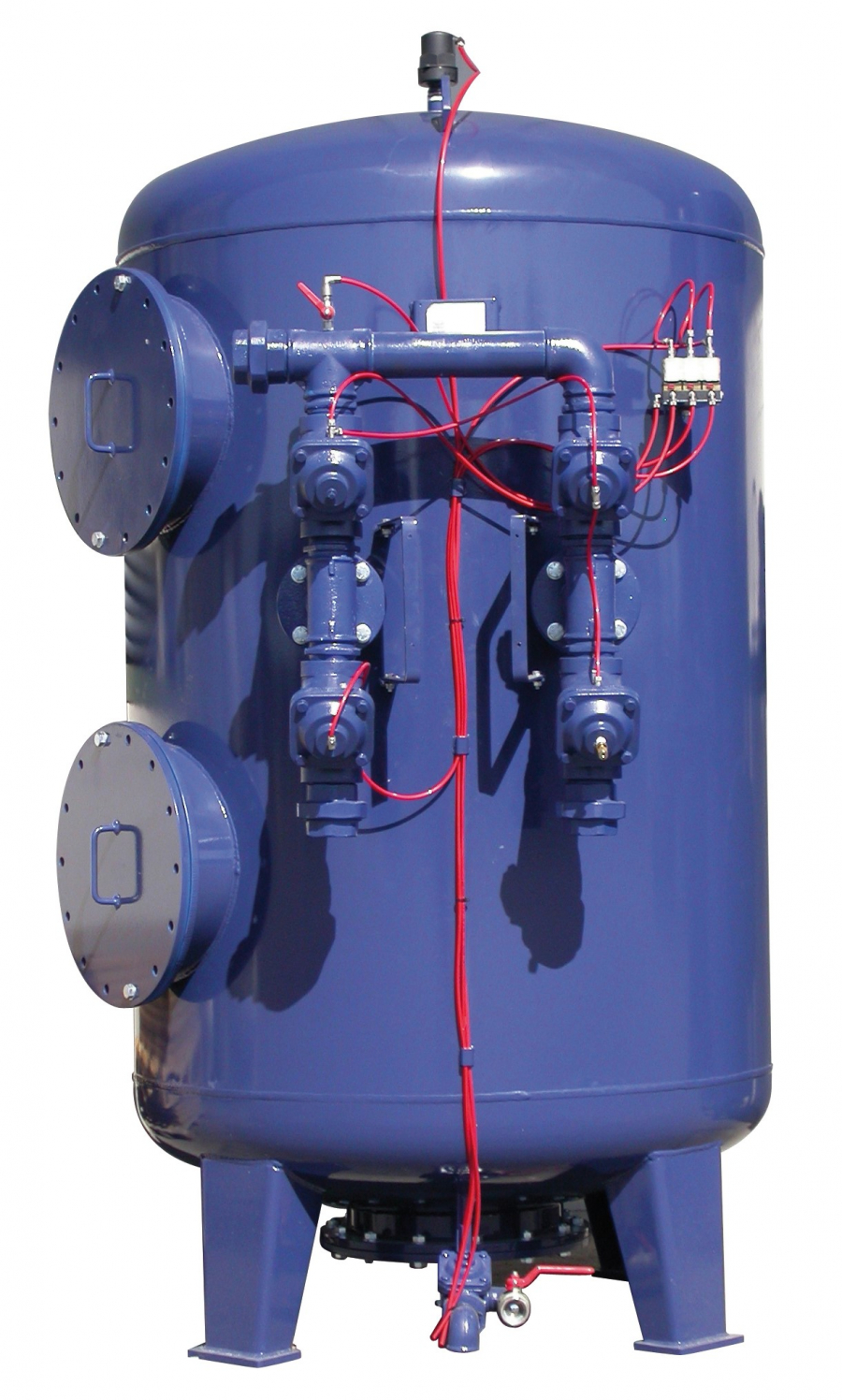

The filter SF FILTER allows to remove impurities from waterwork or well water.

The filter, through the side manholes has to be filled with proper filtering materials (grit/sand) disposed with a more fine grain size moving upwards. In this way will be obtained a effective filtration, ables to remove also the very fine particles and the sludges as well.

Inside the filter (with the exception of the smaller models) there is a metallic plate to sustain the filtering materials. The plate is holed and in every hole is fixed a nozzle to allows the water passage but blocking the filtering materials. The nozzles are placed with a omogeneus distribution to allows a well distributed water passage.

The filter SF FILTER is manufactured with the central metal sheet of 1.500 mm. height. The diameter is variable and according to the different models goes from 400 mm to 1.600 mm with a flow rate from 5 to 80 mc/h.

Are also available filter with the central metal sheet of 2.000 mm height. They are suitable to realize activated carbon filter where there is an extra upper layer considting in activated carbon to remove a large kind of chemicals from water.

The filter is manufactured with the hydraulic unit made with hydropneumatic 3-ways or 2-ways valves. The hydraulic unit allows to perform the counterwashing phase and the clarification phase just before to the operating phase. As alternative it is possible to realize a cheaper filetr using manual valves.

It is also available a solenoid valve group, which correctly connected to the hydropneumatic valve of the unit, allows to activate them.

It is also available an advanced contoller – SO-FT KW CONTROL 1 – to pilot every filter phase and manage the whole filter functions.
