• All-metal construction extremely resistant
• wide range of models with fittings from 1.1/2” to DN 200
• operating flow rate from 14 to 180 mc/h
• inner plate with filtering cartdrige of 90 micron
• filtering cartdrige made in stainless steel structure with double reinforcement support
• top opening with manhole system for an easy inspection
• 1/4" fitting on the outlet/inlet piping for pressure gauges installation
• available with a double layer painting for waterwork water
• available with hot galvanizing surface for hot water plant application
• designed for pressure till 6 bars

HOW IT WORKS

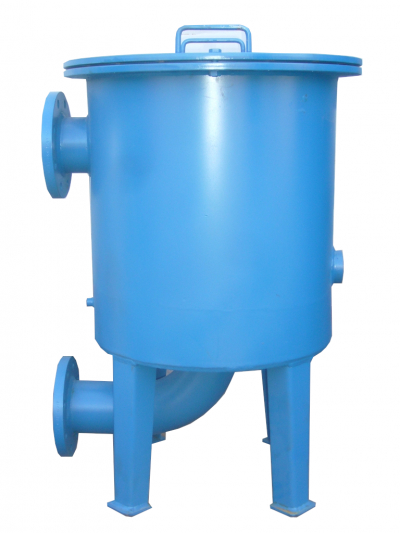

The filter MULTIFILTER allows to remove impurities from water in cold and hot water plants.

The filtration is performed through proper filtering cartdriges made of stainless steel, able to filter impurities from water over 50 micron. The cartdriges are placed on a inner plate and the number is proportional to the filter specific flow rate.

Using a proper hydraulc unit (not included) it is possible to send the water in the opposite direction of the operating one ;this way it is possible to wash the cartdriges, The draining water is sent to the drain through a sleeve placed to the filter side.

The filter can be used also for hot water plant. For this application is available the model hot dip galvanized and with a special insulating covering.

The filter is available with several diameters according to the requested flow rate. The various models are suitable from 14 to 180 mc/h. The hydraulic fittings are available from 1.1/2” to DN 200.
